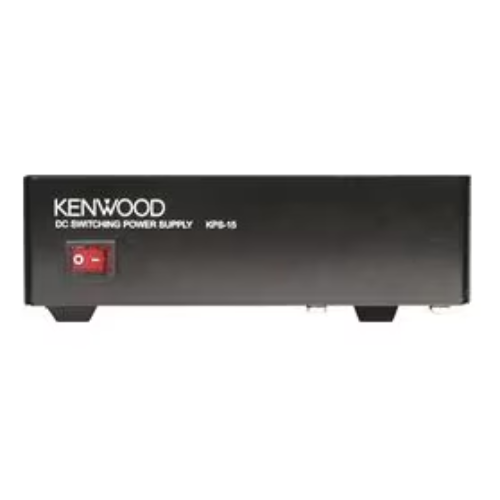

Kenwood KPS-15 13.8V DC 23A Continuous / 25A Peak Power Supply
The Kenwood KPS-15 is a high-performance switching power supply engineered to deliver consistent, reliable power for Kenwood mobile and base station radios. Designed for demanding communication environments, the KPS-15 provides 13.8V DC output at 23 amps continuous or 25 amps peak, ensuring optimal performance for professional-grade two-way radio systems. With a lightweight aluminum chassis, over-current and over-voltage protection, and temperature-controlled forced-air cooling, this power supply combines safety, efficiency, and durability in a compact package.
Ideal for use in dispatch centers, control stations, or fixed communication setups, the Kenwood KPS-15 is the perfect companion to Kenwood mobile radios and accessories such as the KMB-34 Control Station Mounting Case.
Key Features:
-
Powerful Output: Delivers 13.8V DC at 23A continuous and 25A peak for reliable performance.
-
Flexible Input: Supports 117V or 230V AC input (internally selectable for international use).
-
Built-In Protection: Includes over-current and over-voltage safeguards with short-circuit protection.
-
Efficient Cooling: Temperature-controlled forced-air system prevents overheating during extended use.
-
Compact & Lightweight: Measures 7.2 x 8.7 x 2.2 inches and weighs only 3.3 lbs for easy installation.
-
Durable Construction: Aluminum black-anodized chassis provides long-lasting protection and heat dissipation.
-
Ideal for Control Stations: Seamlessly pairs with the Kenwood KMB-34 Mounting Case for base station configurations.
Compatible Radios:
NX-700, NX-720HG, NX-740HV, NX-800, NX-820HG, NX-840HU, NX-900, NX-901, NX-920G, NX-1700H, NX-1800H, NX-3720HG, NX-3820HG, NX-3920G, NX-3921G, NX-5700, NX-5800, NX-5900, TK-5720, TK-5820, TK-6110, TK-7102, TK-7150, TK-7160, TK-7180, TK-7302HV, TK-7360HV, TK-762G, TK-8102, TK-8150, TK-8160, TK-8180, TK-8302HU, TK-8360HU, TK-862G, TK-863G, TK-930, TK-980, TK-981, TK-D740HV, TK-D840HU.
