Kenwood NX-5600HBF3 VHF Low Band 39-50MHz 110W 1024 Channels NXDN Digital Analog Mobile Radio
The Kenwood NX-5600HBF3 is a high-power, VHF low band mobile radio designed for professional users who need ultra-reliable long-range communication. It delivers 110W of RF output in the 39–50 MHz range and supports both NXDN digital and analog conventional modes, making it ideal for organizations transitioning to digital.
Built for maximum flexibility, it comes equipped with built-in Bluetooth, GPS, USB micro interface, voice scrambling, and Active Noise Reduction for loud and clear audio even in high-noise environments. With support for up to 1024 channels (expandable to 4000) and 128 zones, it's designed for dynamic fleet management, public safety, utilities, and wide-area operations.

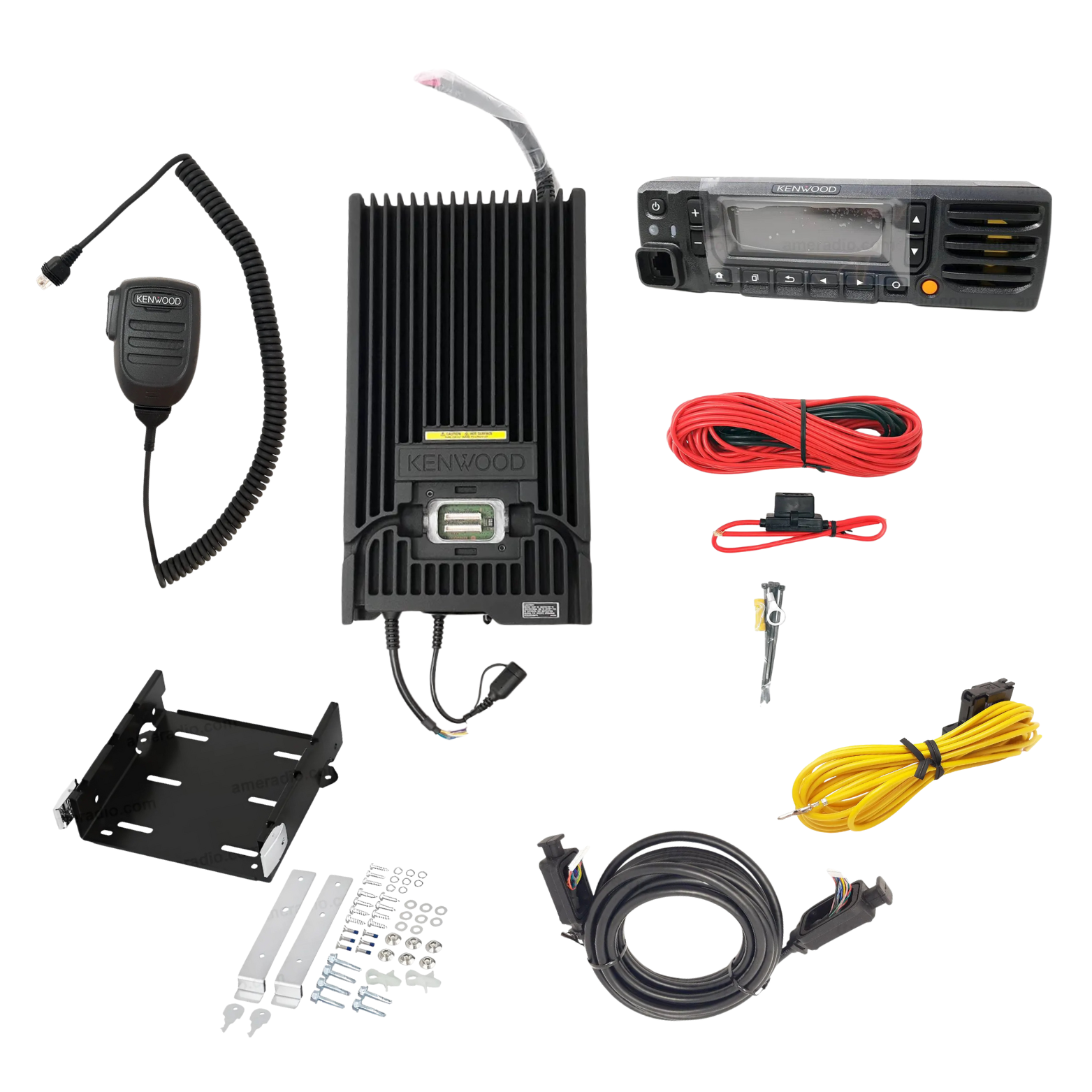

Included Accessories (6ABMIG Package):
KCH-19M – Basic Control Panel
KRK-14HM – Control Head Interface Kit for KCH-19M
KCT-18 – Ignition Sense Cable
KCT-23M4 – DC Power Cable (Remote Mount, 110W)
KCT-71M2 – Remote Control Cable (17 feet)
KMB-36 – Mounting Bracket
KMC-65M – Standard IP54/55 Microphone (No DTMF Keypad)
Condition:
Used as a demo. Tested fully functional.
Key Features:
High Power & Capacity
110W RF Output with selectable 70W / 25W modes
1024 channels (expandable), 128 zones
39-50 MHz VHF low band
Dual-Mode Operation
NXDN digital & analog FM
Ideal for gradual migration strategies
Secure & Reliable
Built-in 56-bit DES encryption
Optional 256-bit AES encryption
Intrusion-resistant via voice inversion scrambler
Modern Interface & Configurations
USB Micro terminal for programming
microSD slot for voice/data logging
Bluetooth 4.0 for hands-free accessories
GPS for live fleet tracking
Supports remote stun/kill/check and status messaging
Audio & Communication
12W audio output at radio unit
3W output at control head
Active DSP noise reduction
Paging, Emergency, Group & All Calls
Over-the-Air Alias and Programming (with KPG-180AP software)
Rugged & Weatherproof
IP54/IP55 rated for dust/water resistance
Compliant with MIL-STD 810 C/D/E/F/G
Ideal for harsh work environments
