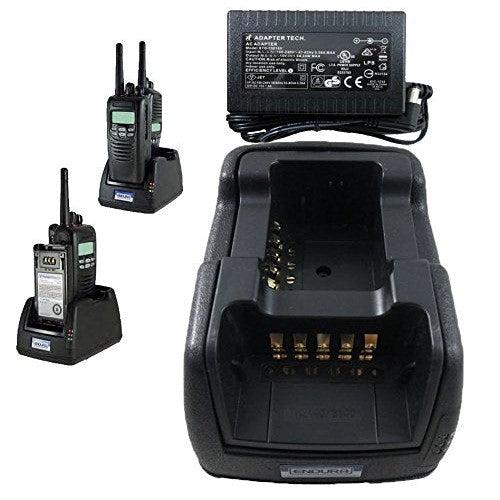

Power Products TWC2M + TWP-KW3-D Dual Radio Charger for Kenwood NX220 NX320 TK2140 TK3140 TK3173 TK2170 TK3170 and more
Power Products dual rapid charger unit.
1 Year Replacement!
TK2140 NX220, NX320, NX420, TK2160, TK2170, TK2360, TK3140, TK3160, TK3170, TK3173, TK3360
TWC2M + TWP-KW3-D
Charges Two Batteries At The Same Time
Batteries may be charged while attached to or off the radio. Charges Li-Ion, LiPo, NiMH, or NiCd batteries.
Separate LEDs confirm charge status of battery in front or rear position.
Replaceable charging pods allows TWC2M to be updated for future use with other radios.
Includes 100V - 240V AC to DC power supply (UL listed) and user manual.
When a battery is placed in TWC2M, the charge status is
indicated by the LED color and the flash pattern.
Solid RED - The battery is charging.
Flashing GREEN - The battery is 80% charged.
Solid GREEN - The battery is fully charged.
Solid ORANGE - Charger is resetting.
Flashing RED - A battery fault condition exists. See user manual for details.
TWC2M features automatic recharging when the radios remain powered on.
Dimensions (W x L x H)
101 x 137 x 81 mm / 3.9 x 5.4 x 3.2 inches
Weight (Charger Only)
290 g / .64 lbs
Li-Ion / LiPo / NiMH / NiCd
Recommended Operating Temperature
15º C – 30º C / 59º F – 86º F
0º C – 65º C / 32º F - 149º F
Power Supply Input (TWC2M-PS)
100V – 240V AC / 47 Hz – 63 Hz / 0.58A (max)
Power Supply Output
15.0V DC / 1.8 – 2.0A
800 mA (10.6V – 13.5V)
