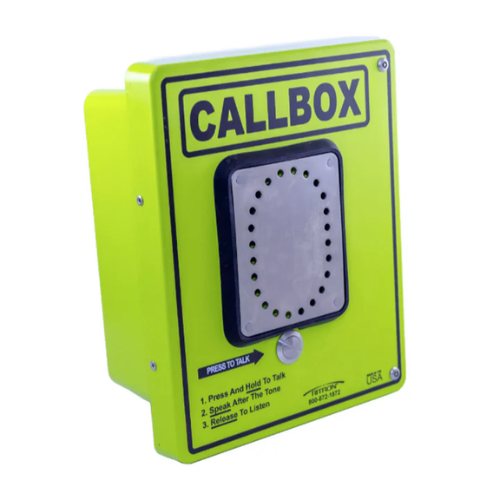

RITRON RQX-417NX-HD UHF NXDN Digital/Analog Single Channel Wireless Radio Callbox
The RITRON RQX-417NX-HD is a rugged, single-channel wireless radio callbox designed for secure communication and remote access control in demanding environments. Operating on UHF business band frequencies and supporting both NXDN digital and analog communication, this callbox offers flexible integration with modern and legacy radio systems. It is ideal for school security, construction sites, healthcare facilities, warehouses, and gated entry points where reliable wireless communication is essential.
Built for outdoor durability, the RQX-417NX-HD features a fiberglass-reinforced enclosure with a weatherproof, gasket-sealed design that protects against dust, moisture, and vandalism. The callbox delivers loud, adjustable audio for clear communication and includes a built-in relay for activating gates, lights, strobes, or other access control devices. Advanced capabilities such as recordable voice messages and sensor-triggered alerts make it a versatile solution for facility communication and security applications.
Key Features:
NXDN Digital & Analog Operation: Supports both NXDN digital and analog UHF communication for compatibility with modern and legacy radio systems.
Reliable UHF Performance: Operates on UHF business band frequencies (license required) for dependable communication.
Flexible Transmit Power: Provides 800mW transmit power on battery and up to 2 watts when externally powered.
Rugged Outdoor Construction: Fiberglass-reinforced enclosure with weatherproof, gasket-sealed design for outdoor installations.
Vandal-Resistant Design: Reinforced hinged enclosure protects internal components from tampering and environmental damage.
Loud Adjustable Audio: High-output speaker ensures clear communication even in noisy environments.
Remote Access Control: Built-in relay allows activation of gates, doors, strobes, or lighting systems.
Voice Message Recording: Record custom messages for greetings, alerts, low battery notifications, or power failure warnings.
Sensor Input with Auto Transmit: Automatically sends alerts when connected sensors detect activity or open/close events.
Flexible Power Options: Operates on alkaline batteries with auto shut-off or optional external 12V DC power supply.
Improved Range Performance: Designed for strong communication with compatible Ritron handheld radios and base stations.
What's Included:
Reinforced Hinged Enclosure (8" x 6" x 4")
D-Cell Battery Holder
12V DC Power / Relay Cable Harness
Four Mounting Tabs for Installation
